The Model

The Dockboat

A 72' floating home — four bedrooms, three baths, an open living space, and a full-width covered porch, powered entirely by sun and battery.

72'
Overall Length
36'
Overall Width
4 / 3
Bedrooms / Baths
4
Electric Outboards
Layout

An open-concept home, arranged for life on the water.

The main living space runs the width of the boat: an open kitchen with island seating, a dining area, and a living room with a full wall of glass facing the water. Four bedrooms and three bathrooms are arranged around that central living space, and a full-width covered porch off the bow gives you shaded, screened-in outdoor living. Storage bays at the stern hold jet skis or other water toys.

  • Open kitchen, dining & living area with island seating
  • Four bedrooms, three bathrooms
  • Full-width covered porch
  • Stern storage bays for jet skis / water toys
  • Floor-to-ceiling windows throughout
Early concept floor plan, elevations, and section drawings for the Dockboat

Early concept drawing — current production layout is 4 bedrooms / 3 bathrooms.

Construction

Built like the dock it came from.

Every material choice traces back to one goal: a boat that needs almost nothing from you, year after year.

Hull

Encapsulated Pontoons

Foam core, fully encapsulated in plastic — no metal to corrode, no wood to rot, nothing to take on water.

Frame

Aluminum Truss

An aluminum truss structure sits atop the pontoons, keeping the platform light, rigid, and rust-free.

Power

Roof-Mounted Solar

Solar panels across the roof keep house batteries topped off without a shore power hookup.

Propulsion

4 Corner Outboards

An electric outboard at each corner gives independent thrust for tight, precise maneuvering.

Inside & Out

A closer look

Electric outboard controls, wheel, and Garmin display at the helm

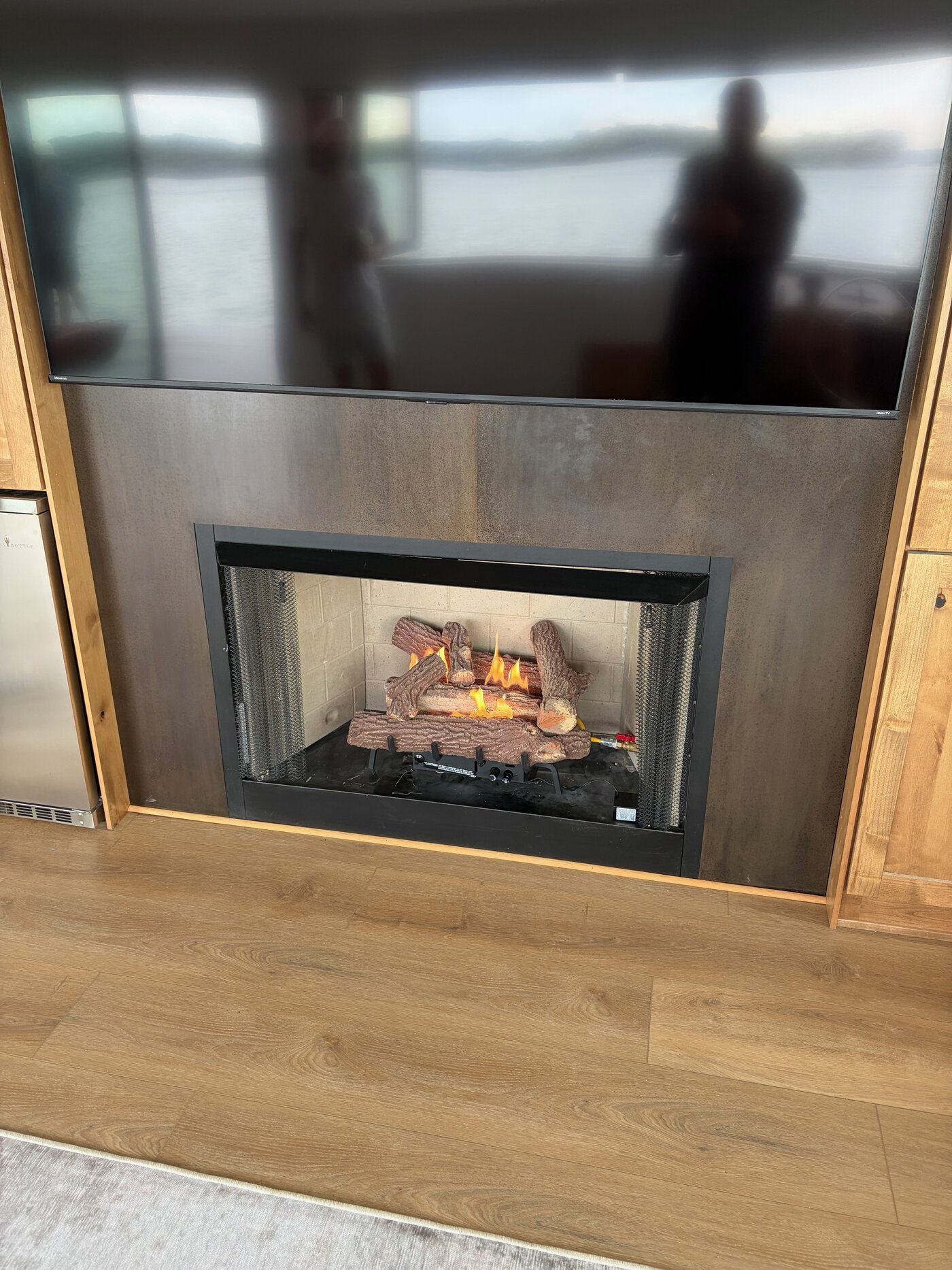

Living room with fireplace and TV aboard the Dockboat
Exterior siding and window detail of the Dockboat

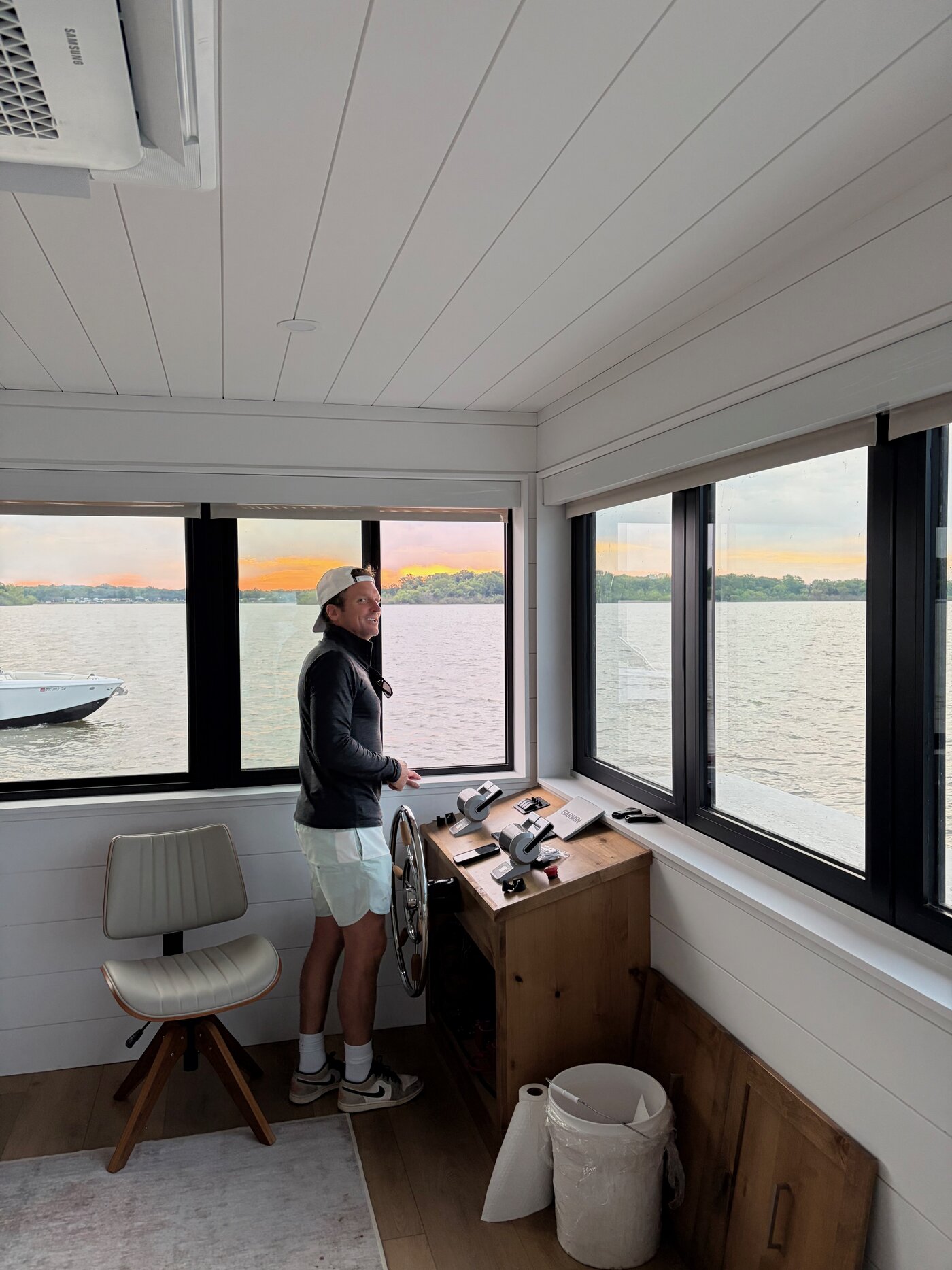

Helm station at sunset overlooking Grand Lake

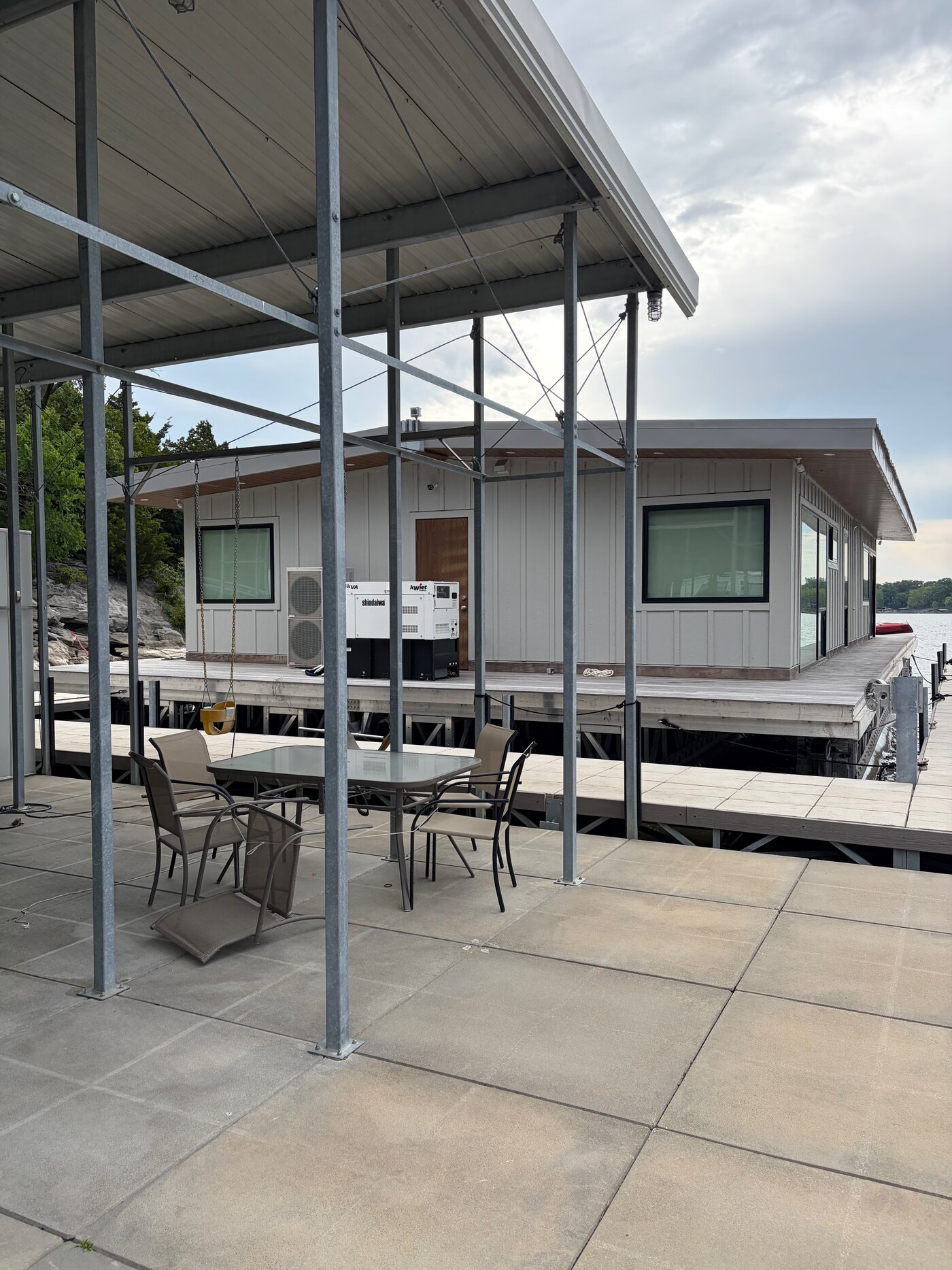

Deck and covered walkway aboard the Dockboat

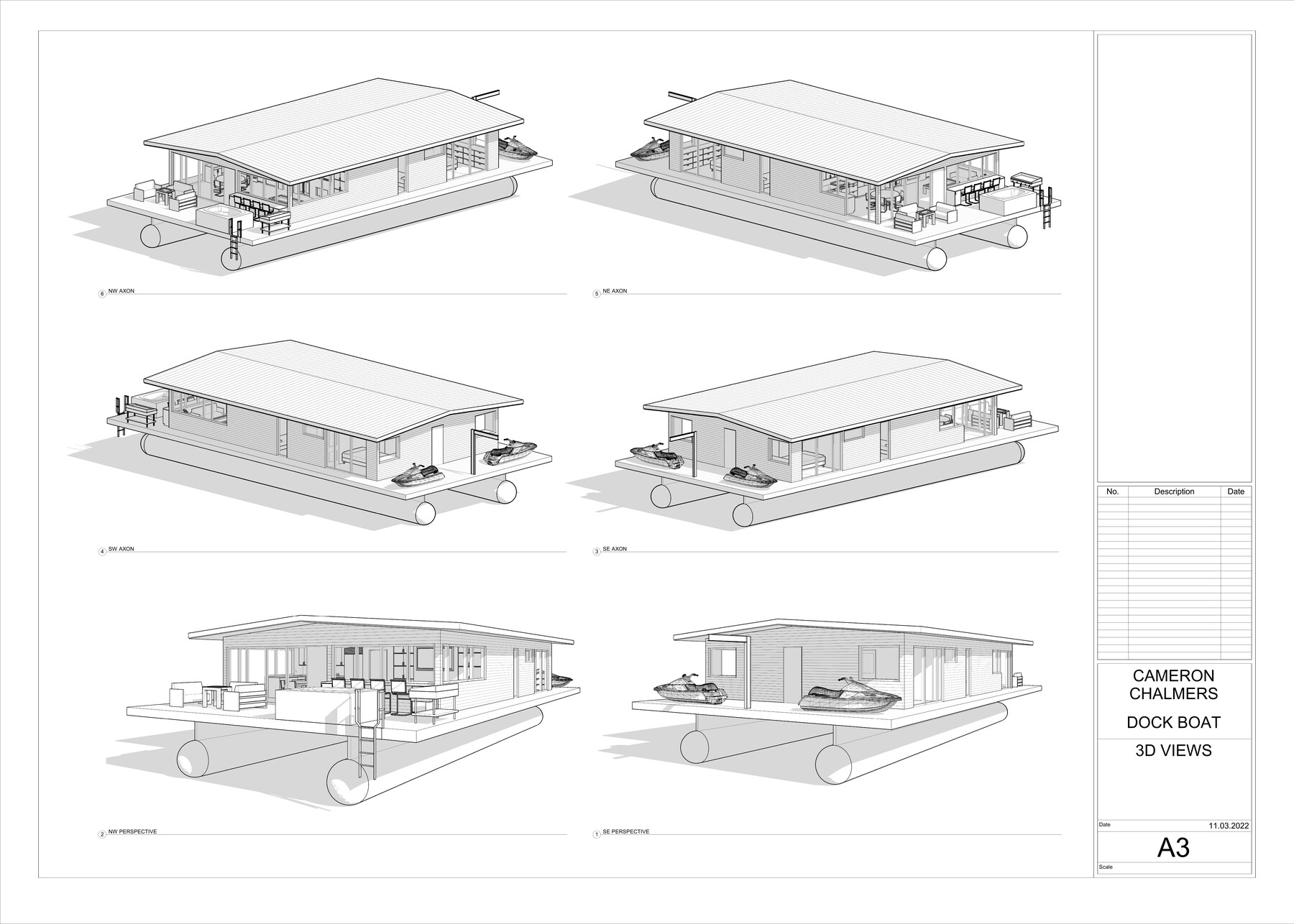

3D axonometric drawings of the Dockboat from multiple angles

More photos and a full video walkthrough are on the way — check back soon.

Full Specifications

Spec sheet

Every dimension, system, and feature on the current Dockboat — standard and optional.

Dimensions & Capacity
PriceApproximately $1,000,000
Length72'
Beam36'
Draft2.5'
Displacement100,000 lbs
Bedrooms / Bathrooms4 / 3
Water Capacity500 gallons
Waste Tank150 gallons
Power & Propulsion
Solar Array19kW, roof-mounted
Battery Capacity120kWh
Standard Engines4 × 12kW Torqeedo electric outboards, corner-mounted (other engine options available)
Maximum Speed6 mph
Cruise Speed4 mph
RangeUnlimited — continuously replenished by the solar array
MaintenanceNo winterization required; minimal maintenance
Standard Features
  • Mini-split HVAC
  • Full kitchen
  • Autopilot
  • Anchor winch
  • Sonos sound system
  • Lutron motorized shades & lighting
  • Starlink or 5G internet
  • 3 TVs
Optional Features
  • Fireplace
  • Diving board
  • Hot tub
  • Grill
  • Washer / dryer
  • Jet ski davit
  • Dual winch anchors
  • Backup generator
A backup generator is available but not required — the solar array and battery bank handle house power on their own.
